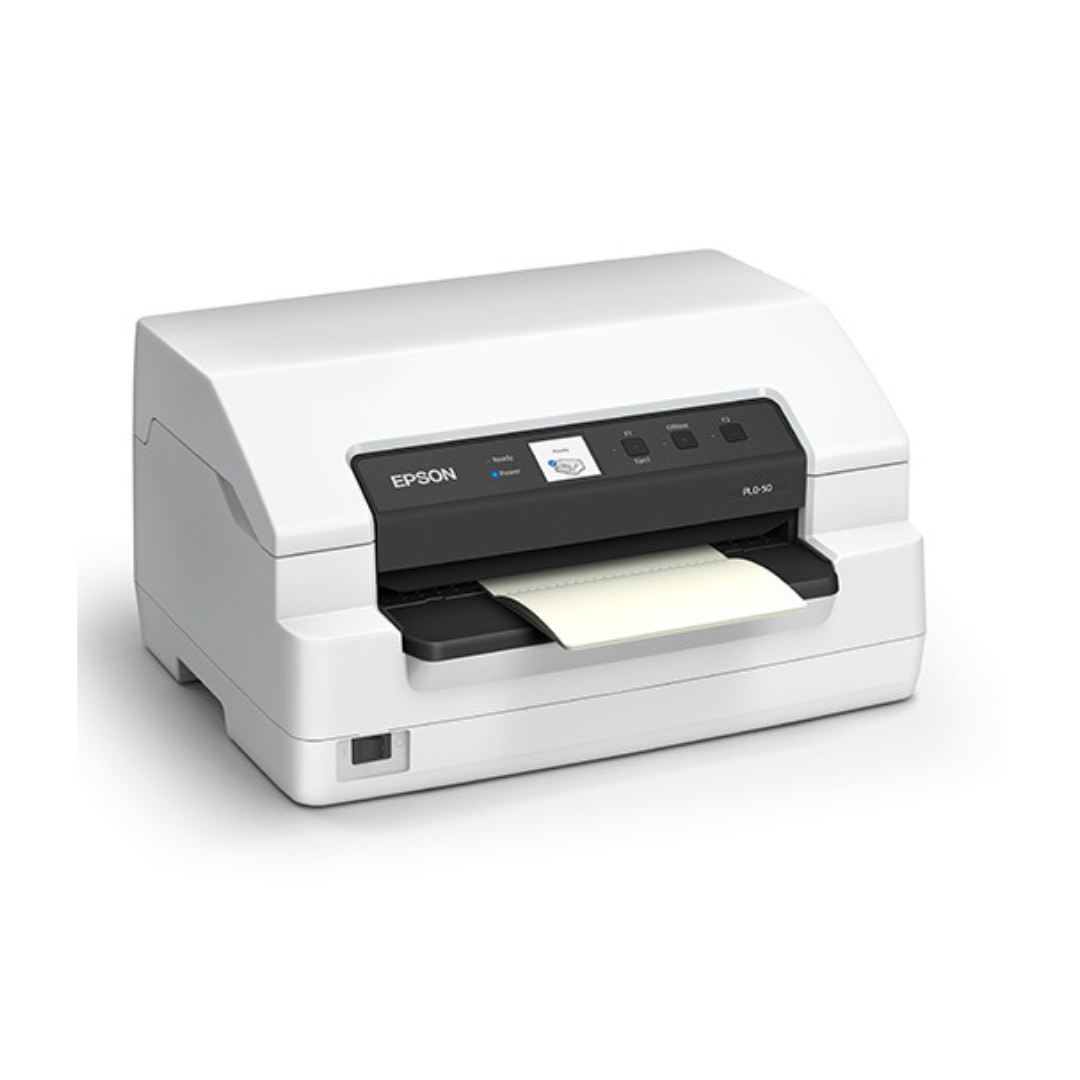

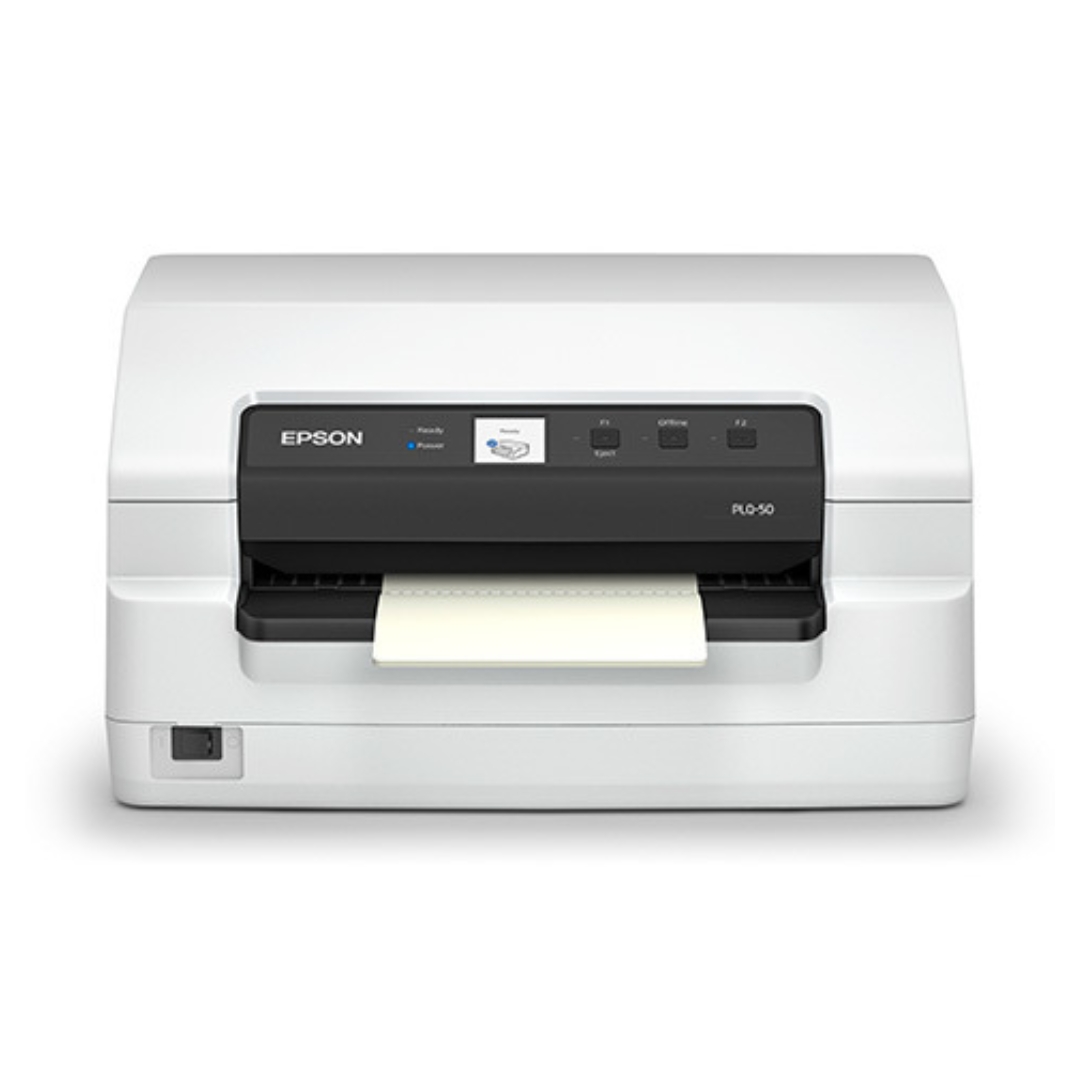

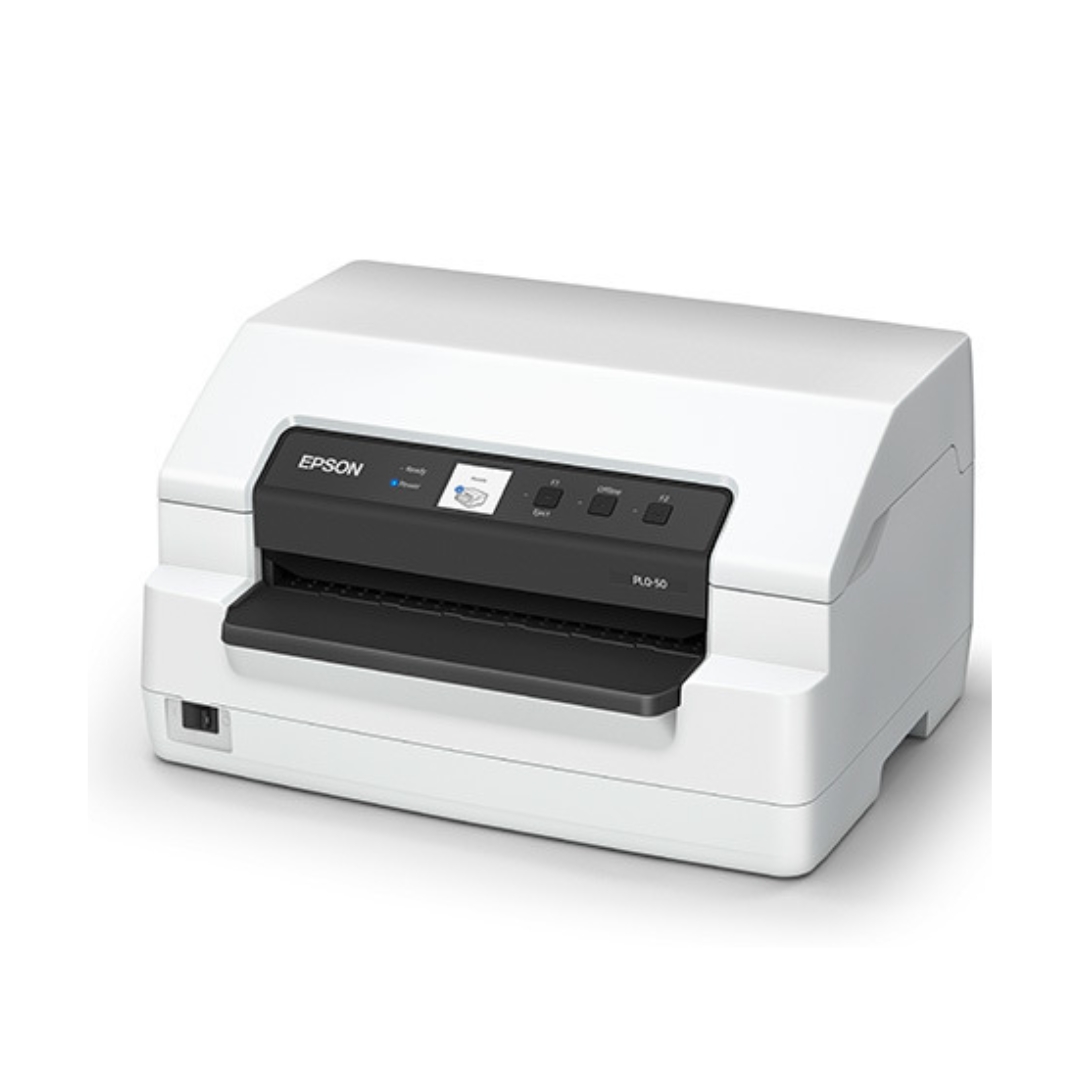

Epson PLQ-50 Monochrome Passbook Printer, Best lowest rate,Price Distributer,Dealer,Wholeseller In-Mumbai,Thane - Navi Mumbai, All India

Prices Inclusive of all taxes

For order Mail us On:

tejas@horizoncomputer.co.in

Or fill up the enquiry form.

Product specifications:

Printing Technology

• Print Method:
  • 24 pins Impact Dot Matrix
• Print Direction:
  • Bi-direction with logic seeking
• Colour:
  • Black
• Control Code:
  • PR2, WNI4915, IBM4722, ESC / P2, ESC / P2 + ESC / MC, IBM PPDS emulation

Reliability

• Mean Volume Between Failure (MVBF):
  • 7 million lines
• Mean Time Between Failure (MTBF):
  • 12,000 Power On Hours (POH)
• Printhead Life:
  • 400 million strokes per wire

Print Characteristics

• Barcode:
  • PR2: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Coda bar (NW-7), Industrial 2 of 5
  • ESC/P: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Coda bar (NW-7), Industrial 2 of 5, Matrix 2 of 5

Paper Path

• Manual Insertion:
  • Front in, Front out / Front in, Rear out

Paper Media

• Cut Sheet (Single Sheet):

  • Width: Min: 65.0 mm, Max: 243.0 mm
  • Length: Min: 67.0 mm, Max: 450.0 mm
  • Thickness: Min: 0.065 mm, Max: 0.190 mm

• Cut Sheet (Multi-part Forms):

  • Width: Min: 65.0 mm, Max: 243.0 mm
  • Length: Min: 67.0 mm, Max: 297.0 mm
  • Copies: 1 original + 6 copies
  • Total Thickness: Min. 0.12 mm, Max. 0.53 mm

• Passbook:

  • Width: Min. 110 mm, Max. 241.3 mm
  • Length:
    • Horizontal Seam: Min. 127 mm, Max. 220 mm
    • Vertical Seam: Min. 85 mm, Max. 220 mm
  • Total Thickness: Max. 2.6 mm (open passbook)

Line Spacing

• Line Spacing:
  • 4.23 mm (1/6 inch)
