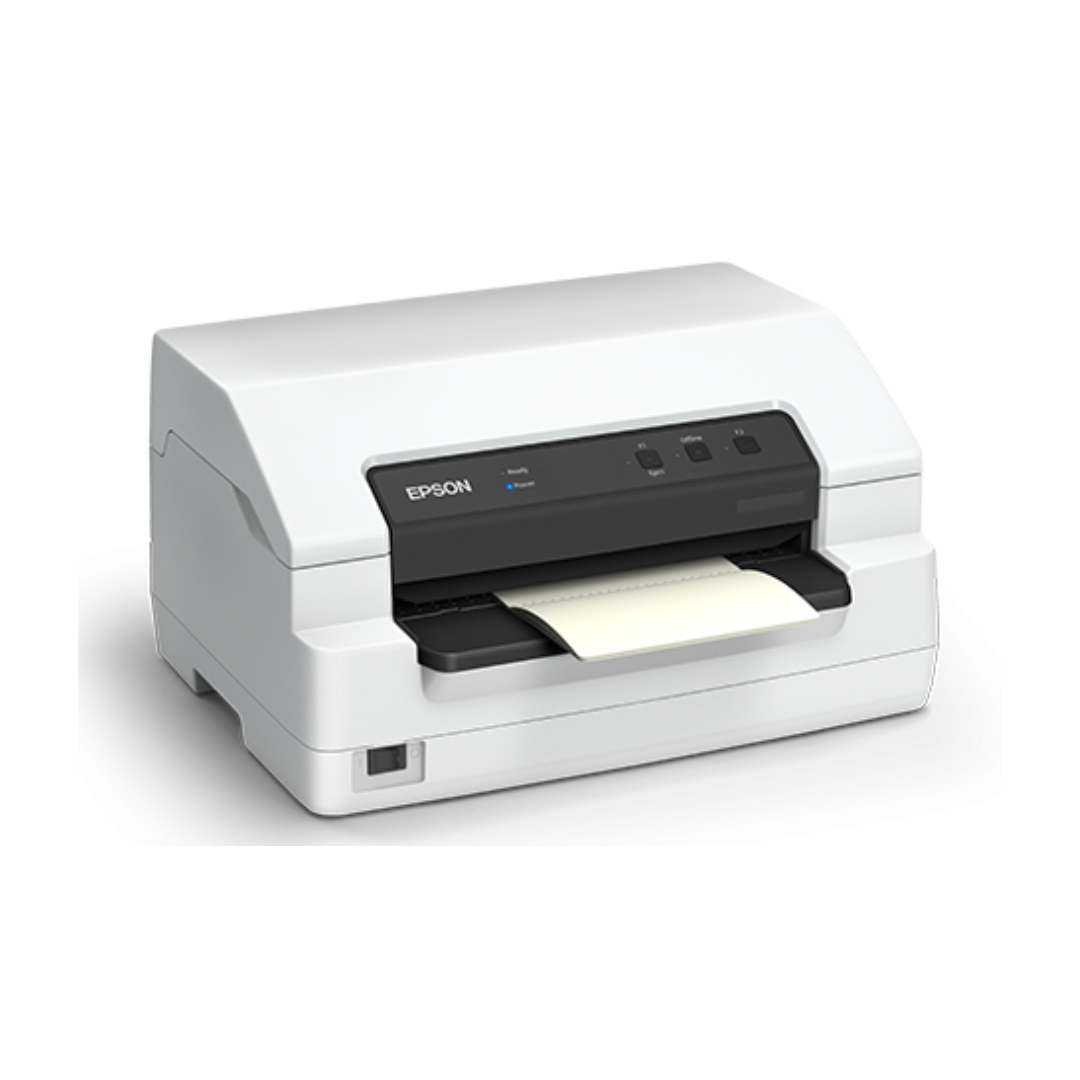

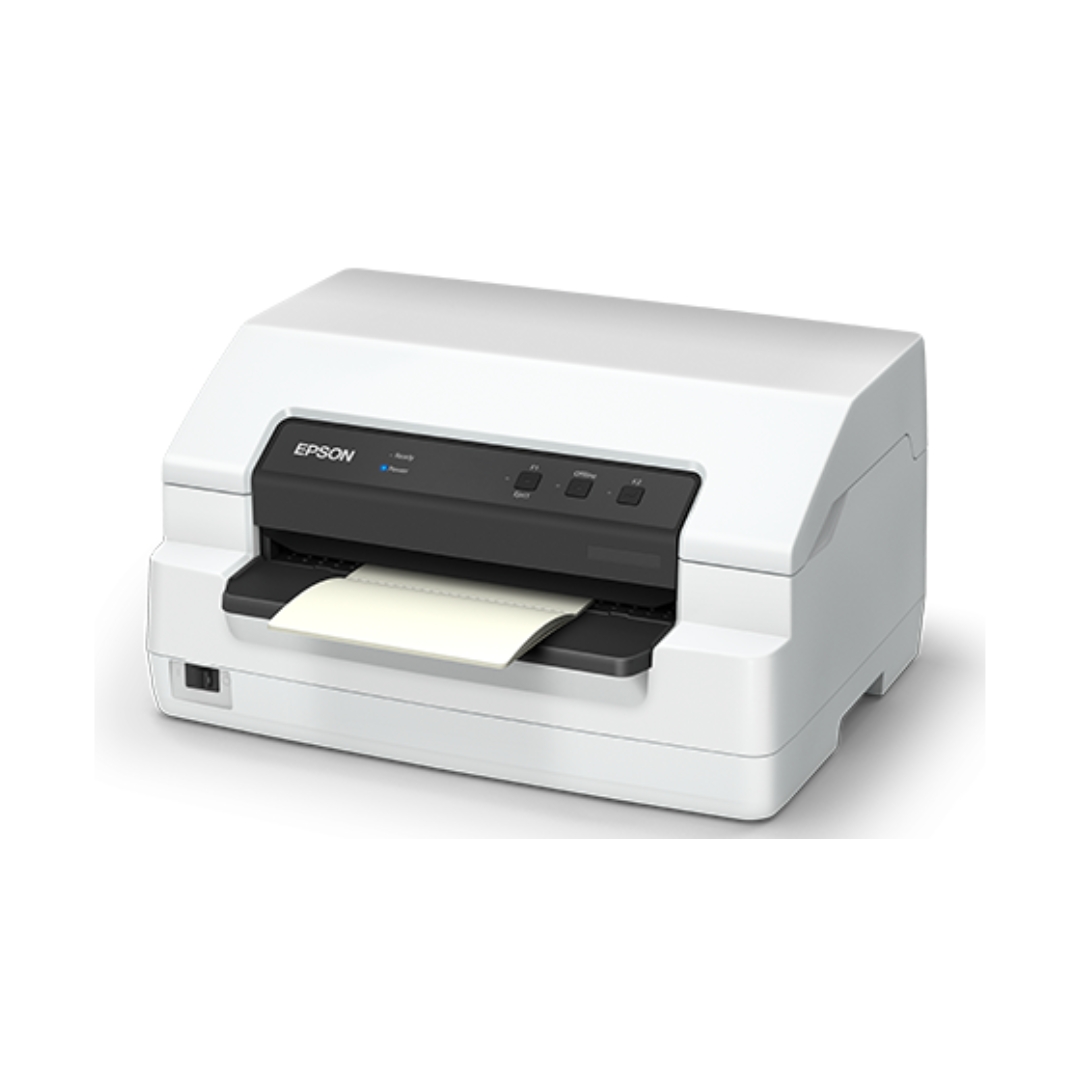

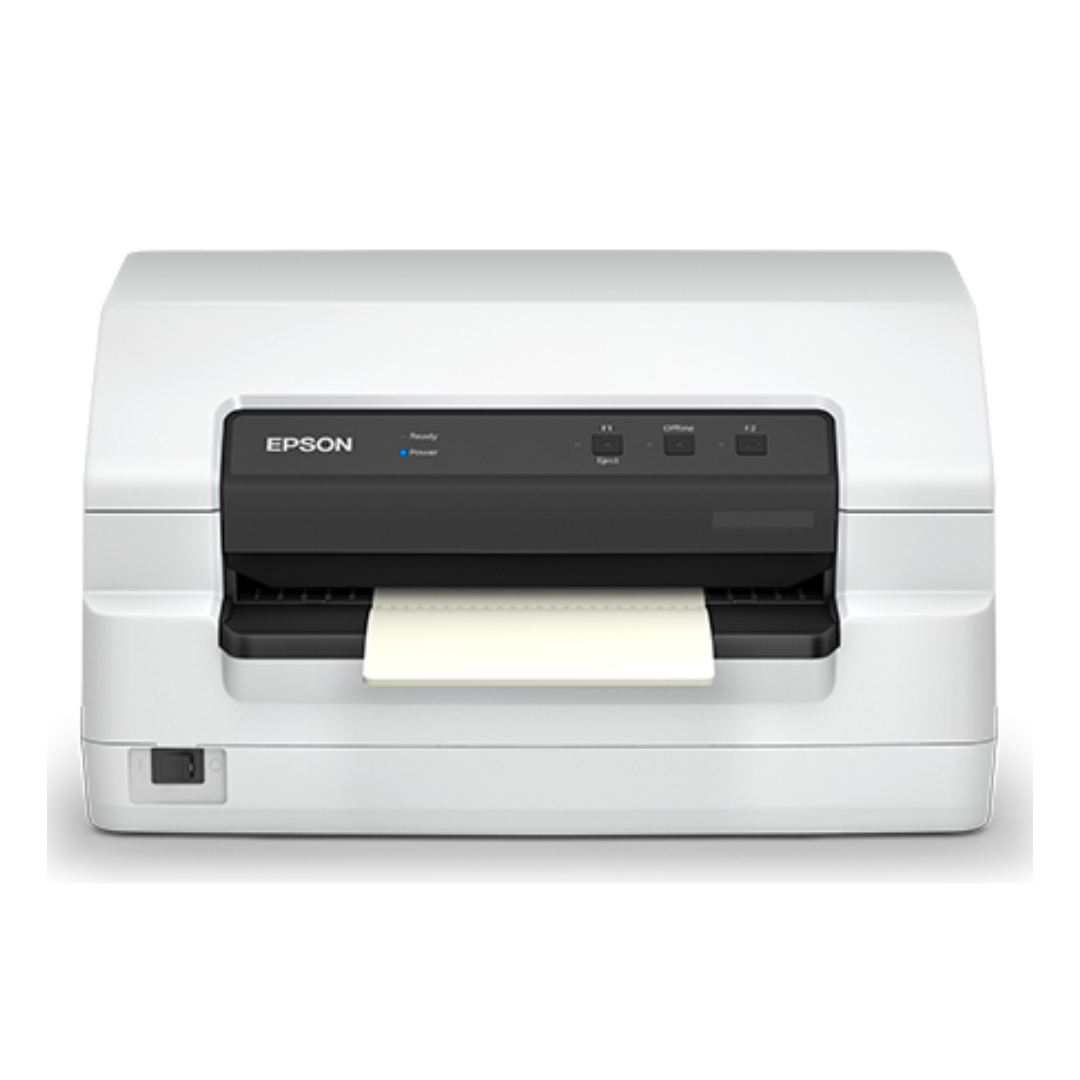

Epson PLQ-35 Monochrome Passbook Printer, Best lowest rate,Price Distributer,Dealer,Wholeseller In-Mumbai,Thane - Navi Mumbai, All India

Prices Inclusive of all taxes

For order Mail us On:

tejas@horizoncomputer.co.in

Or fill up the enquiry form.

Product specifications:

Scanning

• Interface:
  • Bi-directional parallel interface (IEEE-1284 nibble mode supported)
  • Serial Interface
  • High Speed USB 2.0

Printing Technology

• Printing Method:
  • Impact dot matrix
• Print Direction:
  • Bi-direction with logic seeking
• Colour:
  • Black
• Number of Pins in Head:
  • 24 pins
• Control Code:
  • PR2, WNI4915, IBM4722, IBM PPDS, ESC/P2

Reliability

• Mean Volume Between Failure (MVBF):
  • 21 million lines
• Mean Time Between Failure (MTBF):
  • 30,000 Power On Hours (POH)
• Printhead Life:
  • 400 million strokes per wire

Print Characteristics

• Character Sets:
  • International, PC437, PC850, PC860, PC863, PC865, PC861, BRASCII, Abicomp, Roman 8, ISO Latin 1, PC858, CP847 (Thai with TIS Extended) – for IBM 4722 Emulation only
• Barcode:
  • EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code39, Code128, POSTNET

Paper Path

• Manual Insertion:
  • Front in, Front out / Front in, Rear out

Paper Media

• Cut Sheet Size:

  • Width: 65 - 243 mm
  • Length: 67 - 297 mm
  • Thickness:
    • Single Sheet: 0.065 - 0.19 mm
    • Multi-Part: 0.12 - 0.53 mm

• Cheque:

  • Width: 120 - 216 mm
  • Height: 68 - 120 mm
  • Thickness: 0.075 - 0.2 mm

• Copy:

  • 1 original + 6 copies

• Line Spacing:

  • 4.23 mm (1/6 inch)

• Passbook:

  • Width:
    • Min. 110 mm, Max. 241.3 mm
  • Length:
    • Horizontal: 127 - 220 mm
    • Vertical: 85 - 220 mm
  • Thickness:
    • Maximum: 2.6 mm
    • Cover Page: 0.2 - 0.5 mm
    • Each Page: 0.1 - 0.15 mm

Consumables

• Ribbon Cartridge (Black):
  • Approx. 5 million characters (LQ 10cpi, 48 dots/character)

Environmental Conditions (Operating)

• Temperature:
  • Operating: 5 - 38 °C
• Humidity:
  • Operating: 10 - 85 % RH

Electrical and Power Specifications

• Rated Voltage:
  • AC 100 - 240 V
• Rated Frequency:
  • 50 - 60 Hz
• Power Consumption:
  • In Operation: 61 W
  • Sleep Mode: 0.7 W

Acoustic Noise

• Acoustic Noise:
  • A4 Single Sheet: 55 dB
  • Passbook: 52 dB
