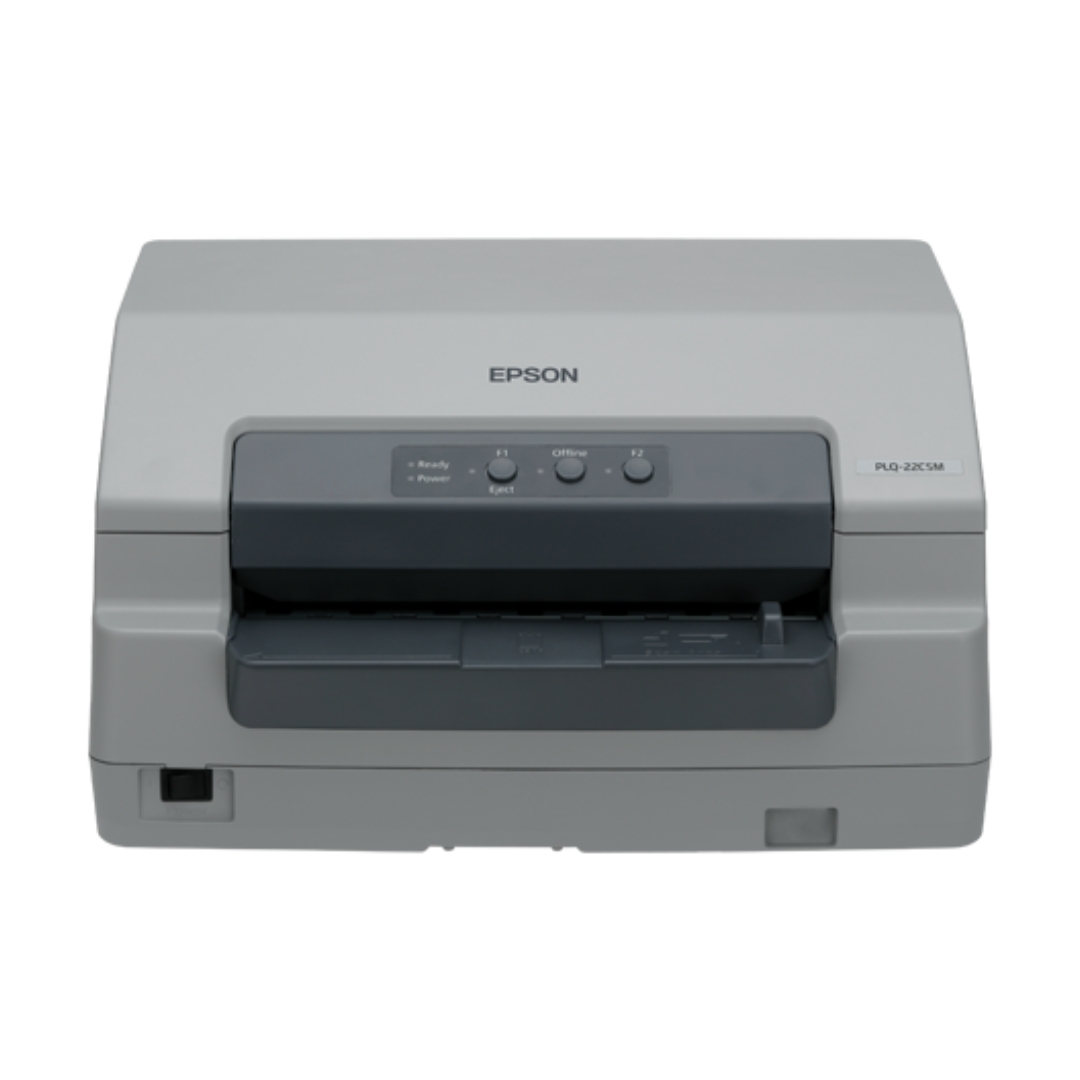

Epson PLQ-22CS Monochrome Passbook Printer, Best lowest rate,Price Distributer,Dealer,Wholeseller In-Mumbai,Thane - Navi Mumbai, All India

Prices Inclusive of all taxes

For order Mail us On:

tejas@horizoncomputer.co.in

Or fill up the enquiry form.

Product specifications:

Scanning

• Scanner Type:
  • Document feed
• Sensor Type:
  • CIS (Contact Image Sensor)
• Maximum Scan Area:
  • 216 × 356 mm
• Output Resolution:
  • Main: 600dpi / 300dpi / 200dpi
  • Sub: 600dpi / 300dpi / 200dpi
• Scanner Bit Depth (Colour):
  • Input: 24bit
  • Output: 24bit
• Scanner Bit Depth (Black & White):
  • Input: 8bit
  • Output: 8bit
• Max Document Size:
  • 216 x 356 mm
• Scan Speed (ADF):
  • Monochrome (Simplex / Duplex):
    • 20 inch/second (200dpi, 300dpi)
    • 3.9 inch/second (600dpi)
  • Colour (Simplex / Duplex):
    • 7.7 inch/second (200dpi, 300dpi)
    • 1.3 inch/second (600dpi)

Printing Technology

• Printing Method:
  • 24 pins Impact Dot Matrix
• Colour:
  • Black
• Control Code:
  • PR2 emulation, ESC/P2, IBM PPDS emulation

Reliability

• Mean Volume Between Failure (MVBF):
  • 7 million lines
• Mean Time Between Failure (MTBF):
  • 10,000 Power On Hours (POH)
• Printhead Life:
  • 400 million strokes per wire

Print Characteristics

• Character Sets:
  • International, PC-437 International
• Barcode:
  • EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Codabar (NW-7), Industrial 2 of 5

Paper Path

• Manual Insertion:
  • Front in, Front out / Front in, Rear out

Paper Media

• Cut Sheet (Single Sheet):

  • Width: 65 - 245 mm | (2.6” - 9.6”)
  • Length: 67 - 297 mm | (2.64” - 11.69”)
  • Thickness: 0.065 - 0.19 mm | (0.0025” - 0.0074”)

• Cut Sheet (Multi-part Forms):

  • Width: 65 - 245 mm | (2.6” - 9.6”)
  • Length: 67 - 297 mm | (2.64” - 11.69”)
  • Thickness: 0.12 - 0.53 mm | (0.0047” - 0.021”)

• Passbook:

  • Width:
    • Horizontal: 110 - 241.3 mm | (4.33” - 9.5”)
    • Vertical: 110 - 241.3 mm | (4.33” - 9.5”)
  • Length:
    • Horizontal: 127 - 220 mm | (5.0” - 8.66”)
    • Vertical: 85 - 220 mm | (3.35” - 8.66”)
  • Thickness:
    • Max: 2.6 mm
    • Cover Page: 0.2 - 0.5 mm
    • Each Page: 0.1 - 0.15 mm
    • Total Thickness: 2.6 mm

Consumables

• Ribbon Cartridge (Black):
  • Approx. 5 million characters (LQ 10cpi, 48 dots/character)
  • Approx. 10 million characters (Draft 10 cpi, 24 dots/character)

Environmental Conditions (Operating)

• Temperature:
  • 5 to 35°C (without condensation)
• Humidity:
  • 10 to 80 % RH (without condensation)
• Acoustic Noise:
  • Approx. 55 dB(A) (A4 Single Sheet)
  • Approx. 53 dB(A) (Passbook)

Input Data Buffer

• Input Data Buffer:
  • 128 KB
