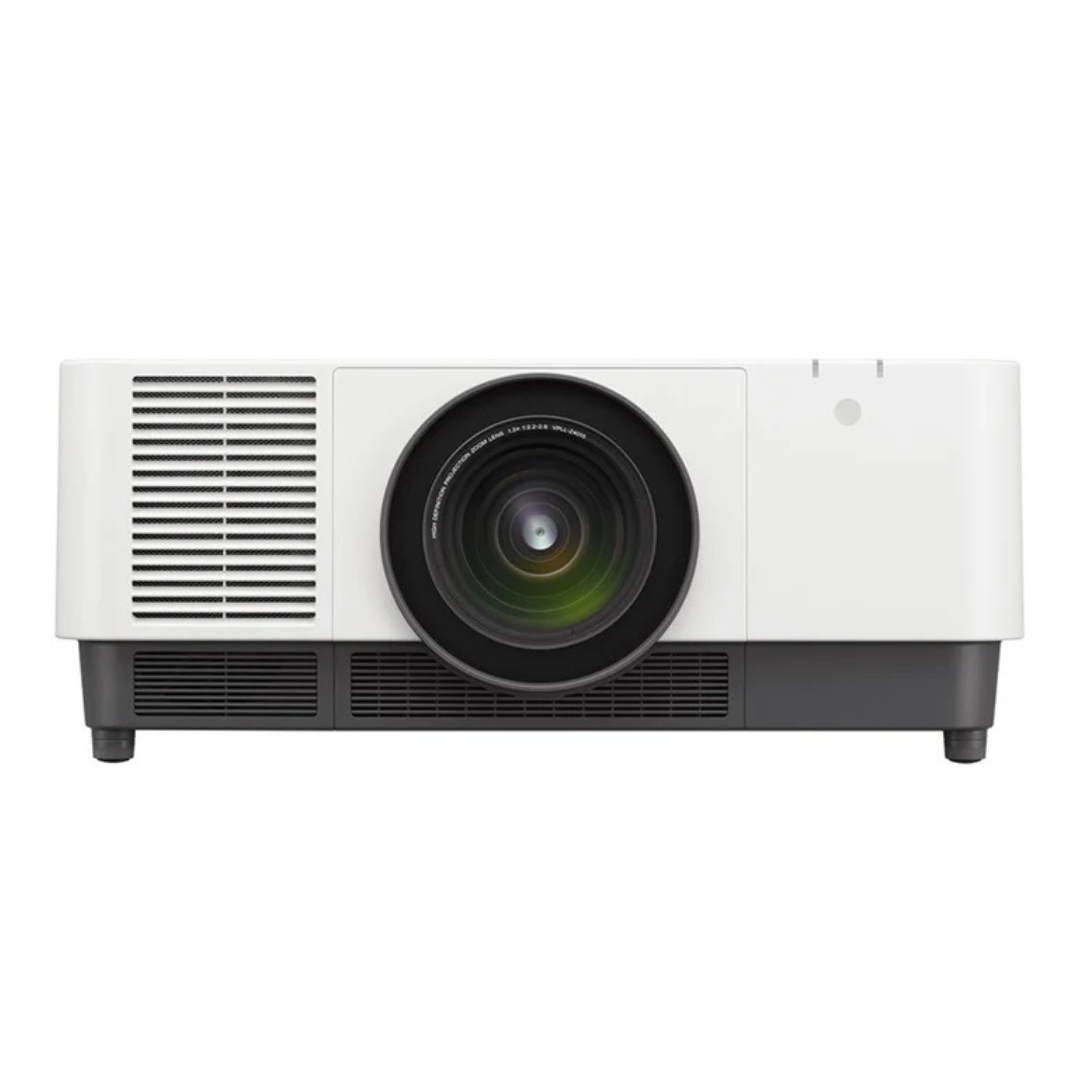

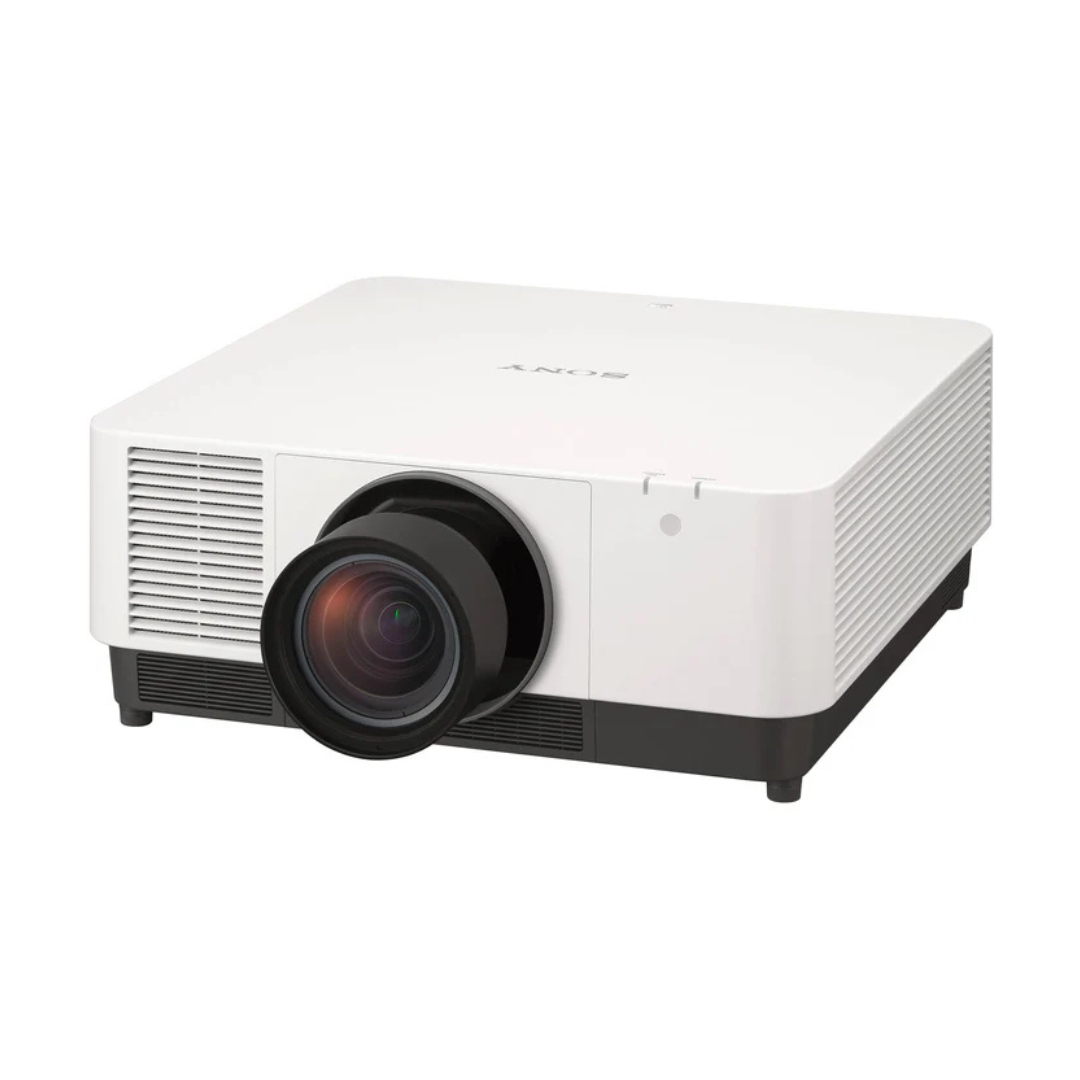

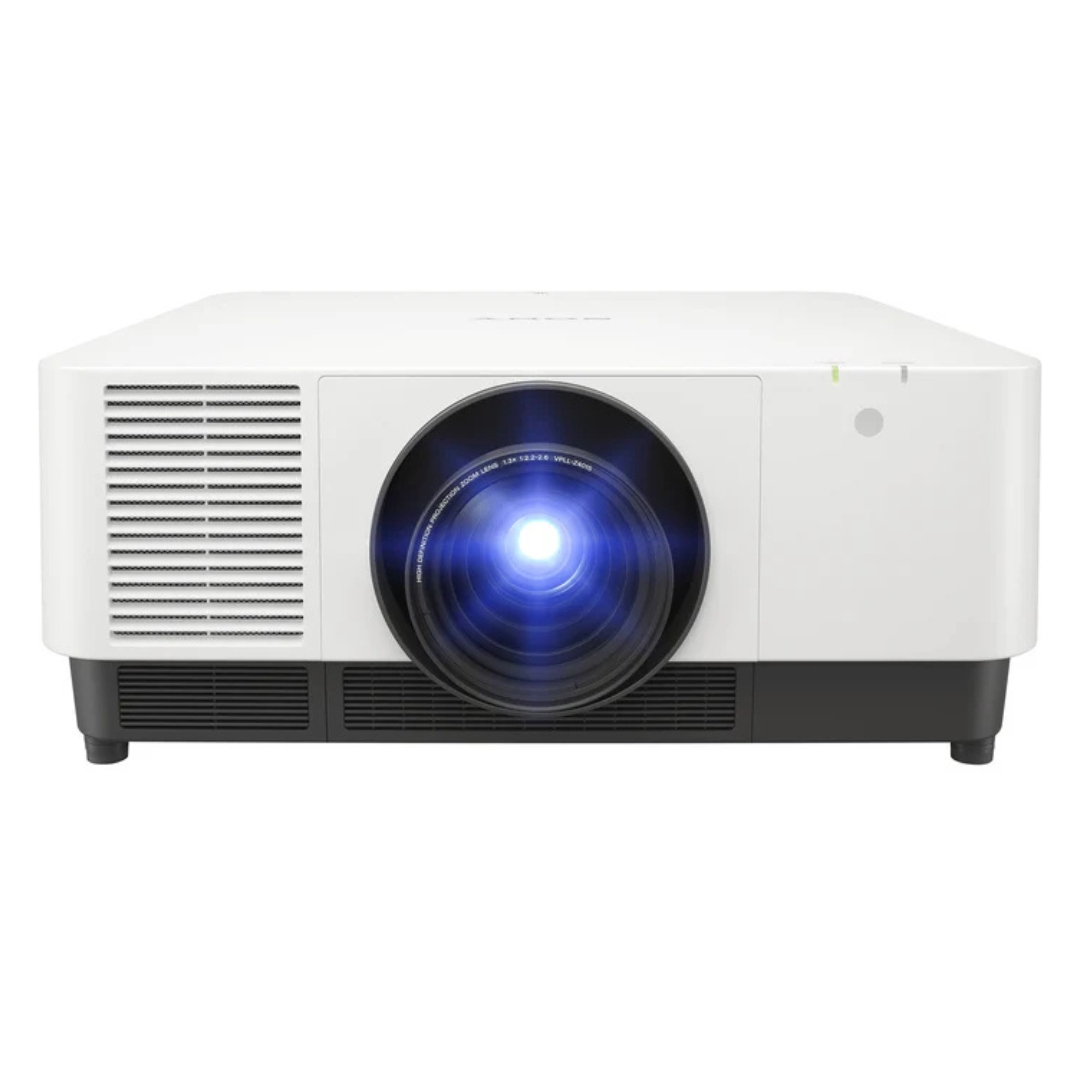

Sony VPL-FHZ91L WUXGA 3LCD Laser Projector, Best lowest rate,Price, Distributor,Dealer,Wholesaler In-Mumbai,Thane - Navi Mumbai, All India

All Prices are Inclusive of taxes

To Place order Mail us on:

tejas@horizoncomputer.co.in

Or fill up the enquiry form.

Product specifications:

Display System:

• Display System: 3LCD system
• Display Device:
  • Size of Effective Display Area: 1” x 3 BrightEra LCD Panel
  • Aspect Ratio: 16:10
  • Resolution: WUXGA (1920 x 1200 pixels)

Projection Lens:

• Focus: Powered/Manual (depending on lens)
• Zoom: Powered/Manual (depending on lens)
• Zoom Ratio: Dependent on lens
• Throw Ratio: Dependent on lens
• Lens Shift: Powered
  • Vertical Range: Dependent on lens
  • Horizontal Range: Dependent on lens

Light Source:

• Light Source Type: Laser diode
• Filter Replacement Cycle (Max.): 10,000 hours (service maintenance)

Screen Size:

• Screen Size: Dependent on lens

Light Output:

• Mode: Standard: 9,000 lm
• Mode: Standard (Center): 9,800 lm
• Mode: Middle: 8,000 lm
• Mode: Low: 7,000 lm
• Color Light Output:
  • Mode: Standard: 9,000 lm
  • Mode: Middle: 8,000 lm
  • Mode: Low: 7,000 lm

Contrast Ratio:

• Contrast Ratio (Full White / Full Black): Infinite (∞:1)

Displayable Scanning Frequency:

• Horizontal: 15 kHz to 92 kHz
• Vertical: 48 Hz to 92 Hz

Accepted Signal Resolution:

• Computer Signal Input: Maximum signal resolution: 1920 x 1200
• Video Signal Input:
  • 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p
  • 1080/60i, 1080/50i
  • Digital signals only: 1080/60p, 1080/50p, 1080/24p, 1080/30p

Input / Output (Computer/Video/Control):

• INPUT A:

  • Connector: 5 BNC (female)

• INPUT B:

  • Connector: Mini D-sub 15-pin (female)

• INPUT C:

  • Connector: DVI-D 24-pin (single link), HDCP support (v1.4)

• INPUT D:

  • Connector: HDMI 19-pin, HDCP support (v1.4)

• INPUT E:

  • Connector: HDBaseT interface connector (RJ45, 3 play)

• INPUT F:

  • Optional Adaptor: 3G-SDI Input Adaptor (BKM-PJ20)

• INPUT G:

  • Connector: HTML Viewer

• OUTPUT 1:

  • Connector: Mini D-sub 15-pin (female) (for Input A/Input B)

• USB-1:

  • Connector: Type-A x 1

• USB-2:

  • Connector: Type-B x 1 (for service)

• REMOTE:

  • Connector: D-sub 9-pin (male) / RS232C

• LAN:

  • Connector: RJ45, 10BASE-T/100BASE-TX/1000BASE-T

Acoustic Noise:

• Mode: Standard: 39 dB
• Mode: Middle: 39 dB

Operating Environment:

• Operating Temperature: 0°C to 45°C (32°F to 109°F)
• Operating Humidity: 20% to 80% (no condensation)

Storage Environment:

• Storage Temperature: -10°C to +60°C (14°F to +140°F)
• Storage Humidity: 20% to 80% (no condensation)

Power Requirements:

• AC Input:

  • 100 V to 240 V, 8.4 A to 3.4 A, 50 Hz / 60 Hz

• Power Consumption (Mode: Standard):

  • AC 100 V to 120 V: 840 W
  • AC 220 V to 240 V: 814 W

• Power Consumption (Standby Mode):

  • AC 100 V to 120 V: 0.50 W (when “Standby Mode” is set to “Low”)
  • AC 220 V to 240 V: 0.50 W (when “Standby Mode” is set to “Low”)

• Power Consumption (Networked Standby Mode):

  • AC 100 V to 120 V:
    • 21.6 W (LAN)
    • 26.5 W (HDBaseT)
    • 26.6 W (ALL Terminals and Networks Connected, when “Standby Mode” is set to “Standard”)
  • AC 220 V to 240 V:
    • 21.3 W (LAN)
    • 26.5 W (HDBaseT)
    • 26.6 W (ALL Terminals and Networks Connected, when “Standby Mode” is set to “Standard”)

Standby / Networked Standby Mode Activation:

• Activation Time: Approx. 2 minutes

Heat Dissipation:

• AC 100 V to 120 V: 2866 BTU/h
• AC 220 V to 240 V: 2777 BTU/h

Physical Dimensions & Weight:

• Dimensions (W x H x D) (without protrusions):
  Approx. 544 x 205 x 564 mm (21 13/32 x 8 1/16 x 22 7/32 inches)
• Weight: Approx. 26 kg (58 lb)

Supplied Accessories:

• Remote Commander: RM-PJ30

Projection Lenses (Optional):

1. VPLL-Z4107

   • Throw Ratio: 0.75:1 to 0.94:1
   • Lens Shift:
     • Vertical: +/-50%
     • Horizontal: +/-24%

2. VPLL-4008

   • Throw Ratio: 1.00:1
   • Lens Shift:
     • Vertical: +/-32%
     • Horizontal: +/-15%

3. VPLL-Z4111

   • Throw Ratio: 1.30:1 to 1.96:1
   • Lens Shift:
     • Vertical: +/-99%
     • Horizontal: +/-51%

4. VPLL-Z4015

   • Throw Ratio: 1.85:1 to 2.44:1
   • Lens Shift:
     • Vertical: +/-98%
     • Horizontal: +/-51%

5. VPLL-Z4019

   • Throw Ratio: 2.41:1 to 3.07:1
   • Lens Shift:
     • Vertical: +/-107%
     • Horizontal: +/-57%

6. VPLL-Z4025

   • Throw Ratio: 3.02:1 to 5.58:1
   • Lens Shift:
     • Vertical: +/-107%
     • Horizontal: +/-57%

7. VPLL-Z4045

   • Throw Ratio: 5.56:1 to 7.5:1
   • Lens Shift:
     • Vertical: +/-107%
     • Horizontal: +/-57%
