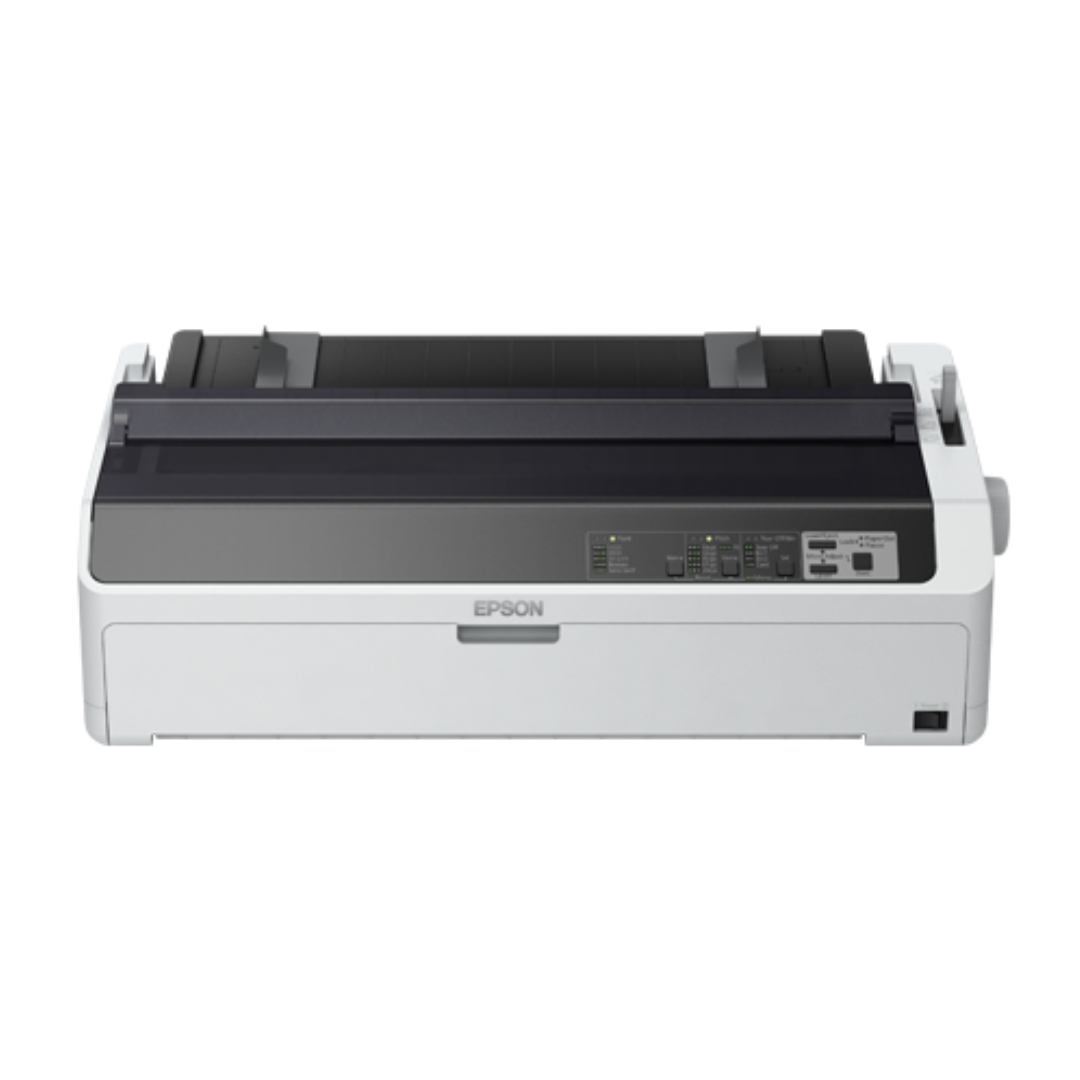

Epson FX-2175II Monochrome Dot Matrix Printer, Best lowest rate,Price Distributer,Dealer,Wholeseller In-Mumbai,Thane - Navi Mumbai, All India

Prices Inclusive of all taxes

For order Mail us On:

tejas@horizoncomputer.co.in

Or fill up the enquiry form.

Product specifications:

Printing Technology

• Control Panel:
  • 6 switches and 10 LEDs
• Print Direction:
  • Bi-directional with logic seeking
• Printing Method:
  • Impact dot matrix
• Number of Pins in Head:
  • 9 pins
• Control Code:
  • ESC/P2, IBM PPDS

Reliability

• Printhead Life:
  • 200 million strokes per wire
• Mean Print Volume Between Failure (MVBF):
  • 30 million lines (excluding printhead)
• Mean Time Between Failure (MTBF):
  • 15,000 Power On Hours (POH) at 25% Duty

Print Characteristics

• Bitmap Fonts:
  • Epson Draft: 10, 12, 15 cpi
  • Epson Roman / Epson Sans Serif: 10, 12, 15 cpi, Proportional
• Scalable Fonts:
  • Epson Roman / Epson Sans Serif
• Barcode Types:
  • EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET

Paper Media

• Cut Sheet (Single Sheet):

  • Entry: Front or Rear
  • Length: 100 - 420 mm (3.9 - 16.5”)
  • Width: 100 - 420 mm (3.9 - 16.5”)
  • Thickness: 0.065 - 0.14 mm (0.0025 - 0.0055”)

• Cut Sheet (Multi-part Sheet):

  • Entry: Front or Rear
  • Length: 100 - 420 mm (3.9 - 16.5”)
  • Width: 100 - 420 mm (3.9 - 16.5”)
  • Thickness: 0.12 - 0.39 mm (0.0047 - 0.015”)

• Continuous Paper (Single Sheet / Multi-part):

  • Entry: Front / Rear / Bottom
  • Length: 101.6 - 558.8 mm (4.0 - 22.0”)
  • Width: 101.6 - 406.4 mm (4.0 - 16.0”)
  • Thickness: 0.065 - 0.39 mm (0.0025 - 0.015”)

• Copies:

  • Original + 4 copies

• Envelopes:

  • No. 6 Envelope:
    • Entry: Rear
    • Dimensions: 92 mm x 165 mm (3.6” x 6.5”)
    • Thickness: 0.16 - 0.52 mm (0.0063 - 0.0205”)
  • No. 10 Envelope:
    • Entry: Rear
    • Dimensions: 105 mm x 241 mm (4.1” x 9.5”)
    • Thickness: 0.16 - 0.52 mm (0.0063 - 0.0205”)

• Label (Base Sheet):

  • Entry: Bottom
  • Length: 101.6 - 558.8 mm (4.0 - 22.0”)
  • Width: 101.6 - 406.4 mm (4.0 - 16.0”)
  • Thickness: 0.16 - 0.19 mm (0.0063 - 0.0075”)

• Card:

  • Entry: Front / Rear
  • Dimensions: 100 mm x 148 mm (3.9” x 5.8”)
  • Thickness: 0.22 mm (0.0087”)

• Roll Paper:

  • Entry: Rear
  • Diameter: 127 mm (5”)
  • Width: 216 mm (8.5”)
  • Thickness: 0.07 - 0.09 mm (0.0028 - 0.035”)

• Line Spacing:

  • Default: 4.23 mm (1/6”)
  • Programmable in increments of 0.059 mm (1/432”)

Consumables

• Ribbon Cartridge (Black):
  • Standard: Fabric Ribbon Cartridge (Black)
  • Ribbon Life: Approx. 12 million characters

Environmental Conditions (Operating)

• Temperature:
  • 5 - 35 °C
• Humidity:
  • 10 - 80% RH
• Acoustic Noise:
  • 56 dB

Input Data Buffer

• Buffer Size:
  • 128 KB
